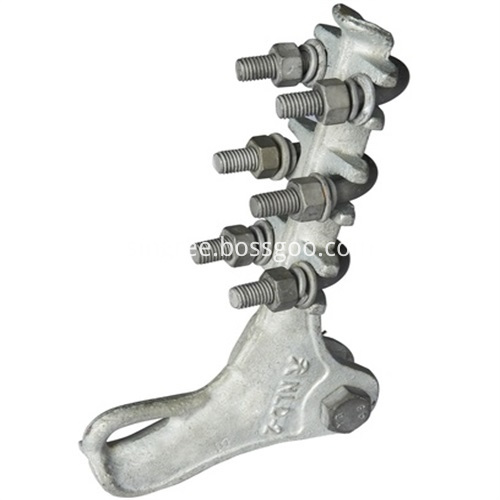

NLD Series Bolt Type Aluminium Alloy Strain Clamp

NLD Series Bolt Type Aluminium Alloy Strain Clamp

    Payment Type: L/C,T/T
    Terms of Trade: FOB,CFR,CIF
    Min. Order: 1000 Piece/Pieces
    Delivery Time: 30 Days
    Packaging: Carton, Wooden case, Sack
    Transportation: Ocean,Land
    Port: FUZHOU

Basic Info

Model No.: NLD Series

Product Description

Electrical strain relief Clamp is primarily used to fix the conductor, ground wire terminals on tension towers of overhead lines, distribution lines and distribution equipments in substations, power plants. Wire strain relief clamp also can fix the guy wire terminals on poles. Moreover, Strain Clamp For Overhead Line bears all the tension of conductors, ground wires and lightning conductors. Pole hardware fittings are used to tension conductors and earth wires and must therefore satisfy the most stringent requirements.

Features

1. High strength and versatility, can be used with a variety of metal fittings

2. Good corrosion resistance

3. Simple installation

4. strain clamp quality is easy to guarantee

5. Optional anti-theft ring to effectively solve the anti-theft problem

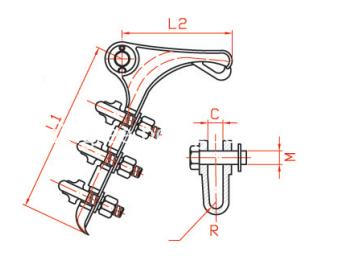

MAIN DIMENSIONS AND STANDARD PARTICULARS
Type NLD-1 NLD-2 NLD-3 NLD-4
Conductor Dia 5.0-10.0 10.1-14.0 14.1-18.0 18.1-23.0
M,mm 16 16 18 18
C,mm 18 18 22 25
L1,mm 150 205 310 410
L2,mm 120 130 160 220
R,mm 6.5 8 11 12.5
U Bolt Qty.,pcs 2 3 4 5
U Bolt Dia.,mm 12 12 16 16
Rated Failure Load,kn 20 40 70 100
Weight,kg 1.3 2.1 4.6 7.1
NLD strain clampNLD clamp


Our Services

1. Small Orders Accepted
2. Fast producing time, Prompt Delivery
3. International Approvals
4. Reply promptly in 24 hours
5. Best Price

FAQ:

1. Q: How about payment terms?
A: 30% TT deposit + 70% TT before shipment,50% TT deposit + 50% LC balance, Flexible payment can be negotiated.
2. Q: Do you have some videos where we can see the line producing?
A: Yes, we can provide some videos for reference.
3. Q: Are you a Manufacture Factory?
A: Yes. We are the direct manufacture factory, and our factory has specialized in porcelain insulator,composite insulator,glass insulator,cut out fuse,abc cable fitting ,arrester , power fitting ,etc.
4. Q: How long is producing time ?
A: Normally it will take about 30 days for production.
5. Q: What is the standard of package ?
A: For small capacity, we use carton, but for big capacity, we will use strong wooden case for protection or double inner packs in a master carton.
6. Q: How do you make sure your good quality ?
A: We use the best raw material , and every single product will go through a series of strict test.
