3 ton fork lifter with paper roll clamp

  • 3 ton fork lifter with paper roll clamp
  • 3 ton fork lifter with paper roll clamp
  • 3 ton fork lifter with paper roll clamp
  • 3 ton fork lifter with paper roll clamp

3 ton fork lifter with paper roll clamp

    Payment Type: L/C,T/T,D/P,Paypal,Western Union
    Terms of Trade: FOB,CFR,CIF,FCA,CPT
    Min. Order: 1 Bag/Bags
    Delivery Time: 20 Days
    Packaging: 20 or 40 feet container
    Productivity: 30000 set/one year
    Brand: SNSC
    Transportation: Ocean,Land
    Place of Origin: China
    Supply Ability: 2500 set/month
    Certificate: ISO,CE
    HS Code: 84272090
    Port: ,,

Basic Info

Model No.: FD30

Product Description

3 ton fork lifter with paper roll Clamp

3 ton fork lifter with paper roll clamp selling point:

(1)Auto electric hydraulic transmission by TCM technology, just use your finger can achieve the forklift's forward and backward;

(2)Japan hydraulic system, by using Shimadzu brand Valve and Pump;

(3)USA Eaton steering gear;

(4)Copper radiator, with better heat radiation;

(5)Rain-proof overhead guard;

(6)Cylinder protection;

(7)Light protection;

(8)Luxury fully suspended seat with armrest and belt;

(9)Warning light;

(10)Wider back mirror;

(11)Red/yellow/green colors for your choice

Photobank 4

3t diesel forklift with paper roll clamp

3t diesel forklift with paper roll clamp(2)

3 Ton Diesel Forklift

3 ton fork lifter with paper roll clamp datas:

Specifications

Unit

FD30

1

Characteristics

Power

-

diesel

2

Rated Capacity

kg

3000

3

Center of load

mm

500

4

Lifting height

mm

3000

5

Free lifting height

mm

145

6

Forks L×W×H

mm

1070×125×45

7

Tilt Forward/Backward

.

6/12

8

Min.turning radius

mm

2600

9

Min.ground clearance(Mast)

mm

120

10

Overhead guard height

mm

2170

11

Front overhang

mm

545

12

Performance

Max.traveling speed(loaded)

km/h

20

13

Max.lifting speed(loaded/empty)

mm/s

470/520

14

Drawback pull/Grade ability

kN/%

18/20

15

Dimensions

Overall length (without fork)

mm

2825

16

Overall width

mm

1230

17

Mast lowered height

mm

2065

18

Mast extended height

mm

4260

19

Chassis

Tire

Front

-

28×9-15-12PR

20

Rear

-

6.50-10-10PR

21

Wheelbase

mm

1800

22

Tread width

Front/Rear

mm

1000/970

23

Curb weight

None-load

kg

4250

24

Powertrain

Battery

Voltage/Capacity

V/Ah

12/90

25

Engine

Model

-

XInchai/Japan Isuzu/Mitsubishi

26

Rated power

kw/r.p.m

37/2650

27

Rated torque

Nm/r.p.m

148/2000

28

Cylinder amount

-

4

29

Bore×Stroke

mm

90×105

30

Displacement

-

2.54

31

Fuel tank

L

70

32

Working pressure

MPa

17.5

3 ton fork lifter with paper roll clamp Package:

20GP can hold 2 sets 3 ton fork lifter with paper roll clamp;

40GP can hold 4 sets 3 ton fork lifter with paper roll clamp;

3t Forklift Package

What kinds forklift we are selling:


1. Diesel Forklift Truck Range from 1 to 10tons; (FD30,FD35,FD40,FD45,FD50,FD60,FD70)

2. Electric Forklift Truck Range from 1.5 to 3.5tons; (FB15, FB20, FB25, FB30, FB35)

3. LPG & Gasoline Forklifts Range from 1.5 to 3.5tons; (FL15, FL20, FL25, FL30, FL35)

4. Warehouse Logistic Forklift 1 to 3tons Reach Truck / Pallet Truck / Stacker ; (YB16,YB20,DB16,DB20)

5.4x4 and 2x4 rough terrain forklift

Snsc Forklift Catalog

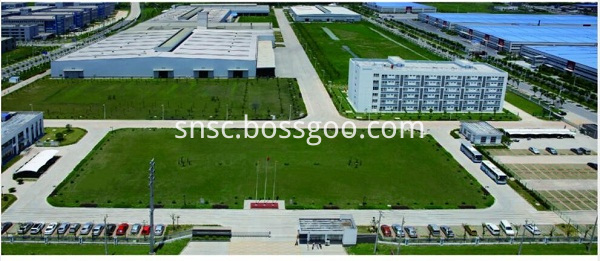

Company introduction:
